1CH Telephone Fiber Optic Converter with 1port 100/1000M Ethernet
Product description:
The rj11 telephone to fiber media converter transmits 1port telephone and 1Port 10/100/1000M Ethernet signals to 1~120KM over a single-mode optical fiber, meeting the needs of users for telephone long-distance transmissions. The device adopts ultra-large-scale integrated circuit design, simple appearance, easy installation, maintenance-free, stable performance to meet the IP supermarkets, living quarters, internet bars, governments and other various kinds of enterprises and institutions’ applications.
Features:
1, Full digital, visual lossless compression HD transmission;
2, LED status indicates power, optical path, video and others;
3, Advanced adaptive technology, electro-optic auto-adjustment;
4, Support single mode (0~120KM), multimode (0~2KM) fiber transmission;
5, Suitable for industrial harsh environments;
6,Standard RJ11 telephone interface
7,Support voice access,Caller ID and Fax
8,Support point-to-point, cascaded and distributed network connections, and SNR will not decline
Application
Factory renovation, relocation distance call system
highway 122 phone systema
Remote multimedia teaching / campus monitoring, video conference systems
telephone intercom, phone calls, related applications
Product specification:
| Product Name :1Channel rj11 telephone to fiber media converter with 10/100/1000M Ethernet |
| Product Model :HXT-1T1E/HXT-1T1GE |
| Optic | Fiber interface | FC/SC |
| Input light center wavelength | Multimode (850nm); single mode (1310nm, 1550nm) |
| Transmit power | -9.5~-3dBm average optical power 850nm |
| Light receiving sensitivity | <-36 (BER<10) |
| Transmission distance | 1m ~ 20Km multimode fiber,20Km to 120km single mode fiber,20KM default |
| Jitter characteristics | Meet the G.742 and G.832 standards |
| Telephone | Description | FXO/FXS Ordinary telephone |
| Telephone Ports | 1 x rj11 |
| Switch Terminal | Ordinary telephone or PBX, PBX (PBX), public telephone outside the PSTN |
| FXS | Ringing voltage: 75V, ringing frequency: 25HZ |
| FXO | Second line input impedance:600Ω (hook), return loss: 40db, ring detection voltage:35V |
| Ring detection frequency | 17HZ-60HZ, second-line input impedance: 600Ω (hook), return loss: 40 db |
| Broadband Voice | 8KHZ |
| Connection | Point to point, telephone to telephone, telephone to switch |
| Code | PCM code |
| Ethernet | Work mode | Full duplex/half duplex |
| Data Rate | RJ45, 10/100/1000Mbps(AUTO) |
| Standard | IEEE802.3 10Base IEEE802.3u 100Base IEEE802.3ab 1000Bas IEEE802.3z 1000Base |
| Transmission Mode | Store and Forward |
| General | Power supply | DC5V |
| Power consumption | <5W |
| Operating temperature | -10~55°C |
| storage temperature | -25 to65 ° C |
| Humidity (no condensation) | 0 to 95% |
| Dimension | 100x70x25mm |
| Package Size | 21.5x16x7cm |
| material | Iron |
| colour | Black |
| Net Weight | 0.35Kg/pair |
| Gross Weight | 0.7Kg/pair |
| MTBF | >30000hour |
Panel Diagram
| Interface | Transmitter and Receiver |
| Rj11 | Telephone 1 Input and Output |
| Rj45 | Ethernet Input and Output |
| OPT | Fiber Port |
| DC-5V | 5V Power port |
More Details
Standard package for 1pair:
1Pcs Telephone fiber transmitter&receiver,
2Pcs DC5V2A power adaptors
1Pcs USER Manual
All with pearl cotton protection
Connection Diagram:
|
|

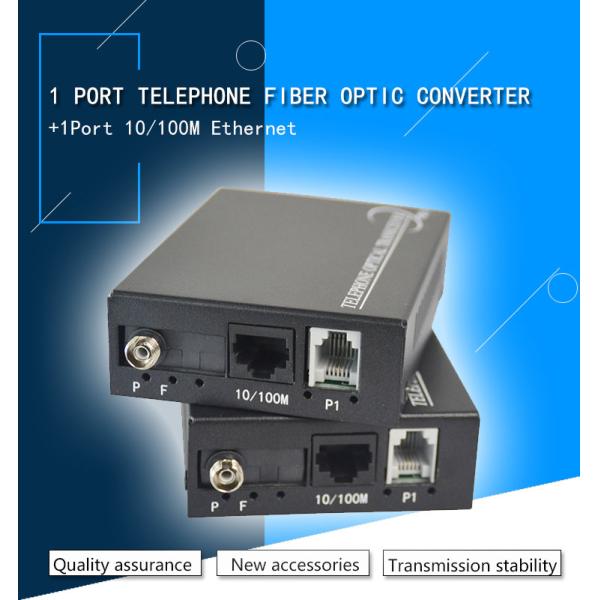

1Port rj11 telephone to fiber media converter for phone&10/100/1000M ethernet over singlemode fiber up to 20Km Images
|
